Voiceprint DI Impulse Response Pedal

Regular price: $429.00
Sale price: $429.00
Regular price

Since the beginning of acoustic amplification, musicians have been forced to sacrifice the complex sound of their prized guitars to play at louder volumes. You could use a mic to capture detail and suffer feedback, or use a pickup for higher volumes at the expense of your guitar’s true voice.

To bridge this gap, we spent nearly three years in intensive research collaborating with acoustic scientists and digital signal processing experts, including Dr. Jonathan Abel, co-founder of Universal Audio.

This breakthrough is our patented Voiceprint technology. Our proprietary Impulse Response technology leverages the processing power of your smartphone, measuring the acoustic response of your guitar in your hands to create a custom digital Voiceprint representing the true voice of your instrument. Your Voiceprint can then be saved into a preset that you can further modify with EQ, anti-feedback, and level controls for a full toolkit of live performance features.

Master Volume level control
Voice blends your instrument’s custom Voiceprint with your pickup signal for enhanced accuracy
Anti•FB applies your anti-feedback profile for effective feedback control. Short press for phase inversion.
Select scrolls through up to 99 instrument presets
Pad attenuates input by 0dB, -3dB, -6dB, or -9dB to accommodate a wide-range of input levels
Mute footswitch for ¼" and XLR outs. Long press for bypass.
Next footswitch selects the next instrument preset

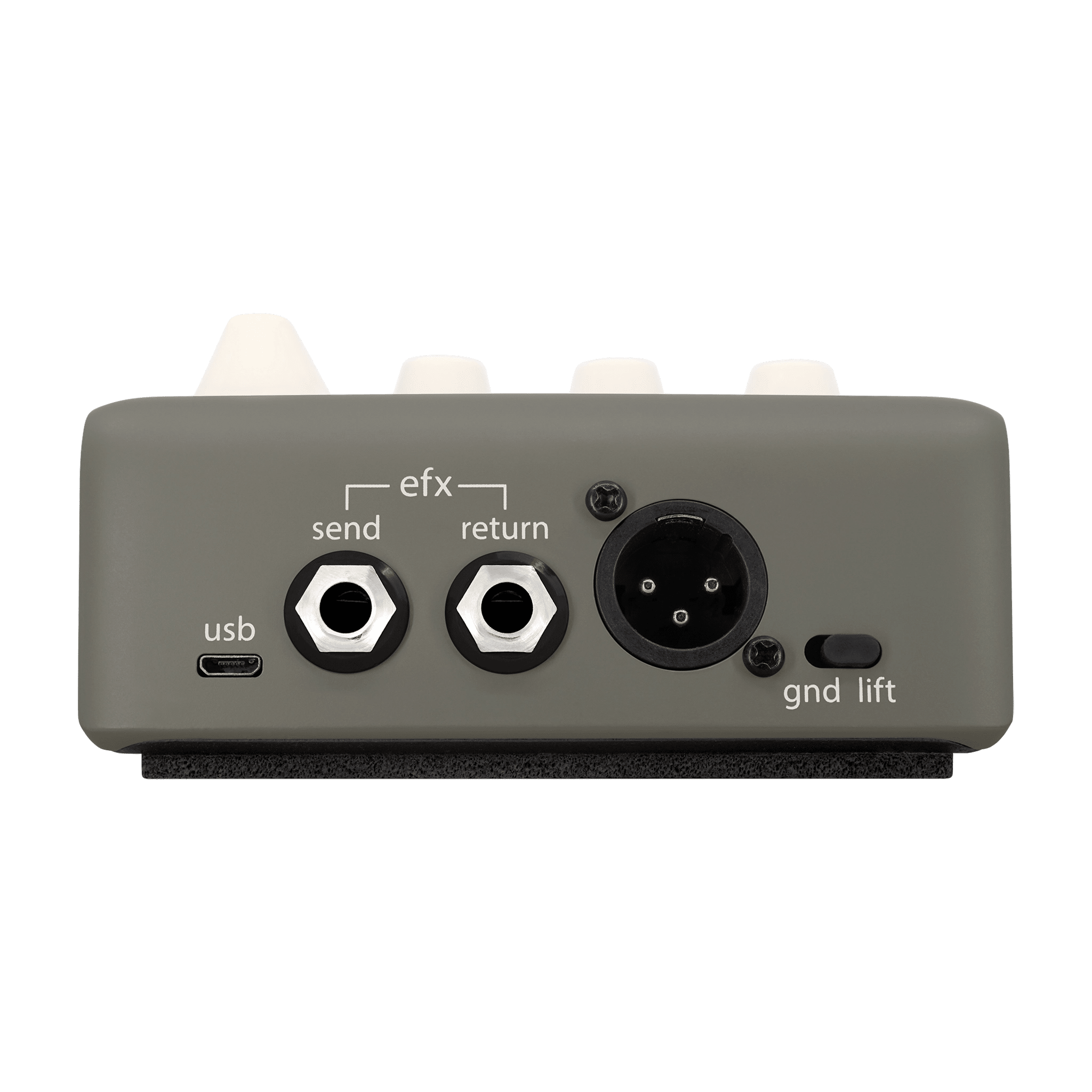

Series FX loop (separate jacks for send and return)
Ground lift switch effectively eliminates ground-loop noise

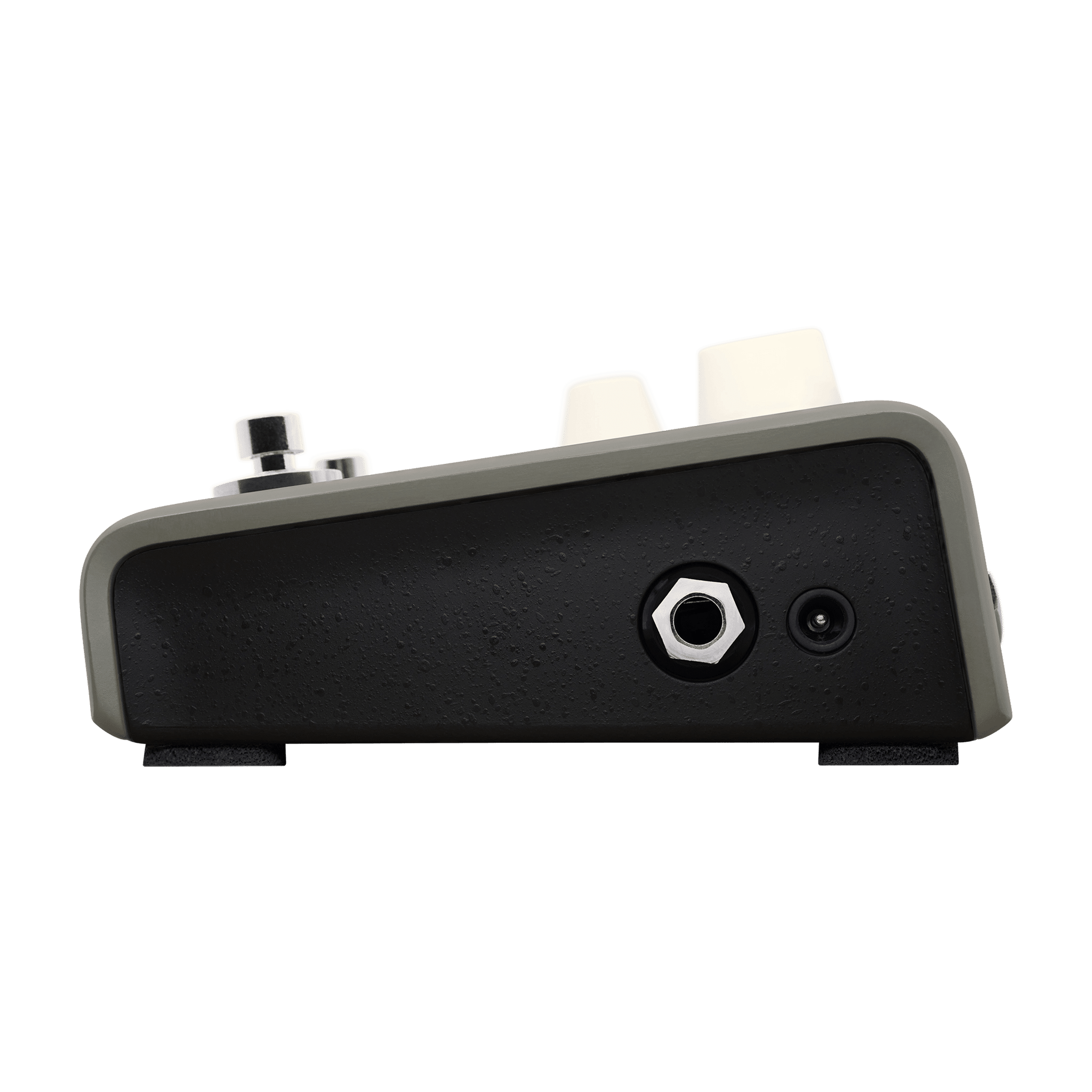

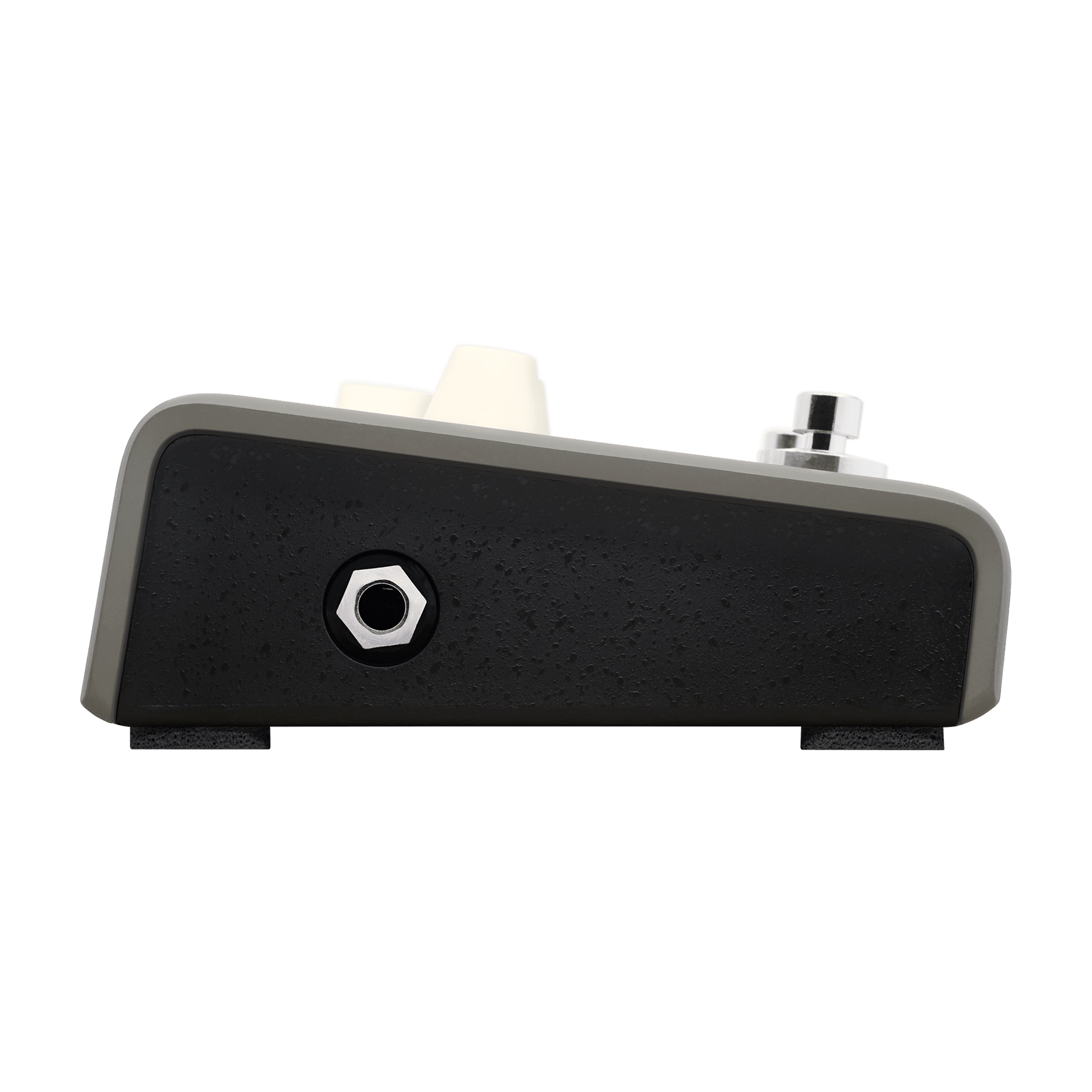

¼" input
XLR and ¼" outputs
9V DC power
Compatible with iPhone 6 and later as well as with most major Android device manufacturers

In Stock

Free shipping on all orders! We currently ship only to US addresses.

Also available through:

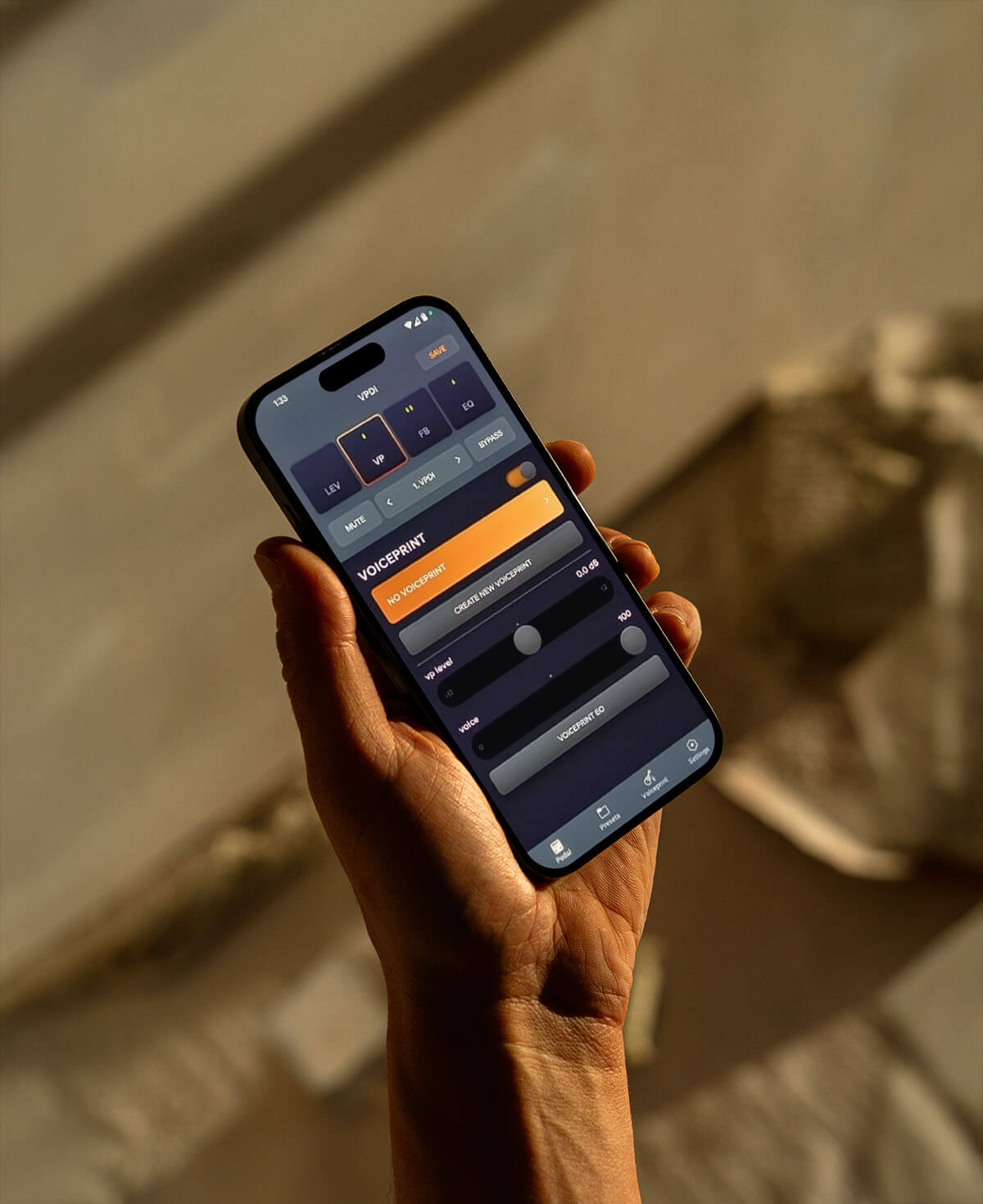

The AcousticLive App

The AcousticLive app connects your iOS or Android phone to the Voiceprint DI and guides you step by step through the process of capturing the response of your guitar and pickup. Preview the sound and save it into one of the Voiceprint DI’s 99 available presets.

Each preset contains an additional suite of controls to fine-tune your sound:

LEV (Levels): Precise control over your input Pad and Preset Level so you can switch between presets and guitars without changes in volume.
VP (Voiceprint): Continuous, real-time control of the blend between your raw pickup and Voiceprint, with a dedicated EQ module that affects only the sound of the Voiceprint.
FB (Feedback): Manual and automatic feedback controls let you play safely in any environment.
EQ (Equalizer): Includes seven custom EQ presets built in and a fully adjustable 5-band parametric equalizer with high-pass and low-pass filters. Use the app’s Preset Library to quickly move presets between pedals and devices or modify Preset playlists.

02.

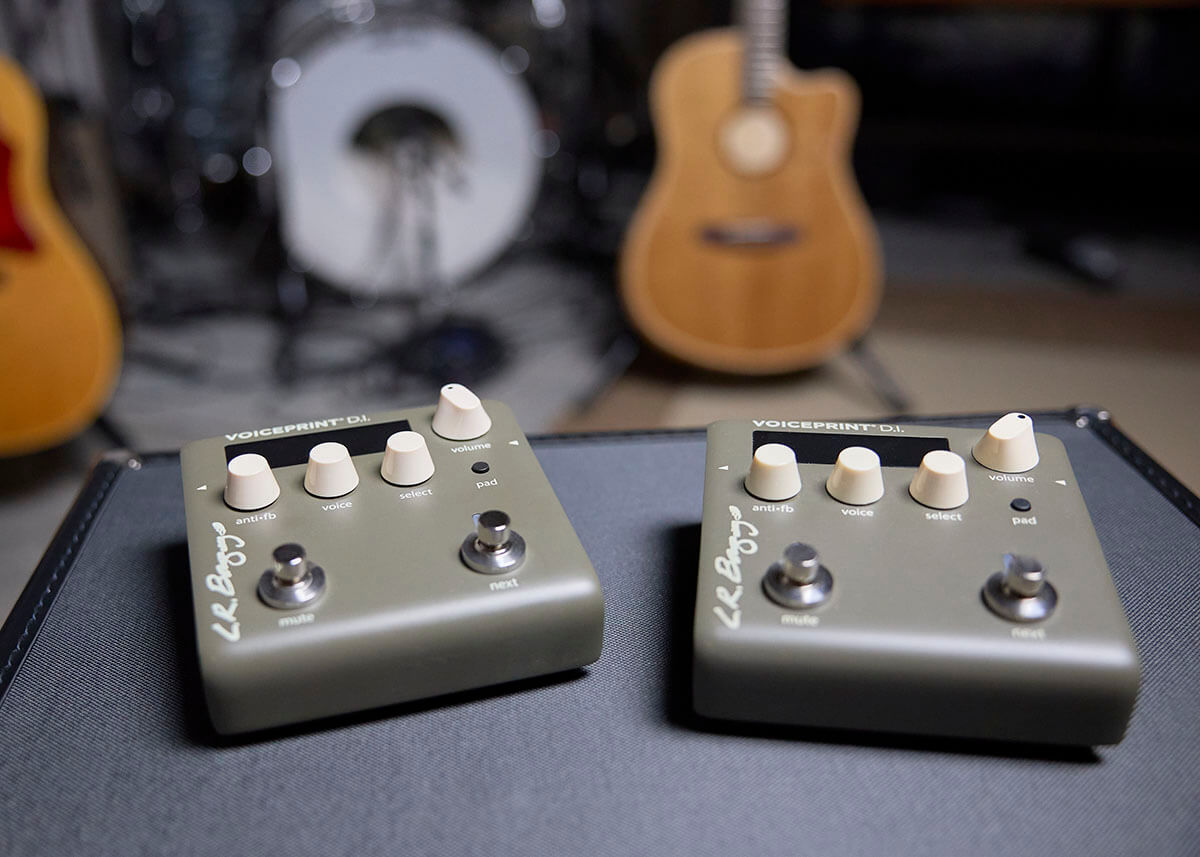

The Voiceprint DI

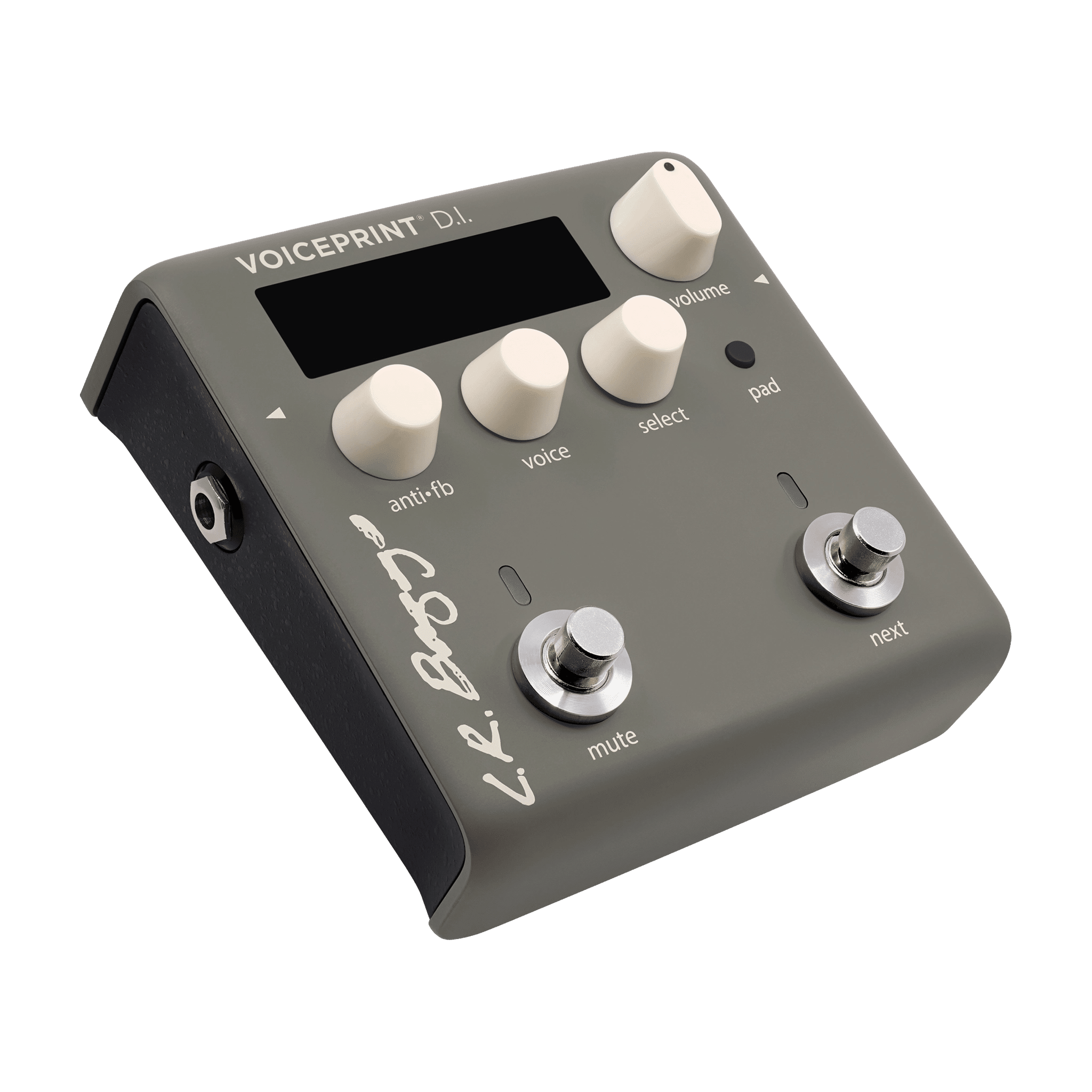

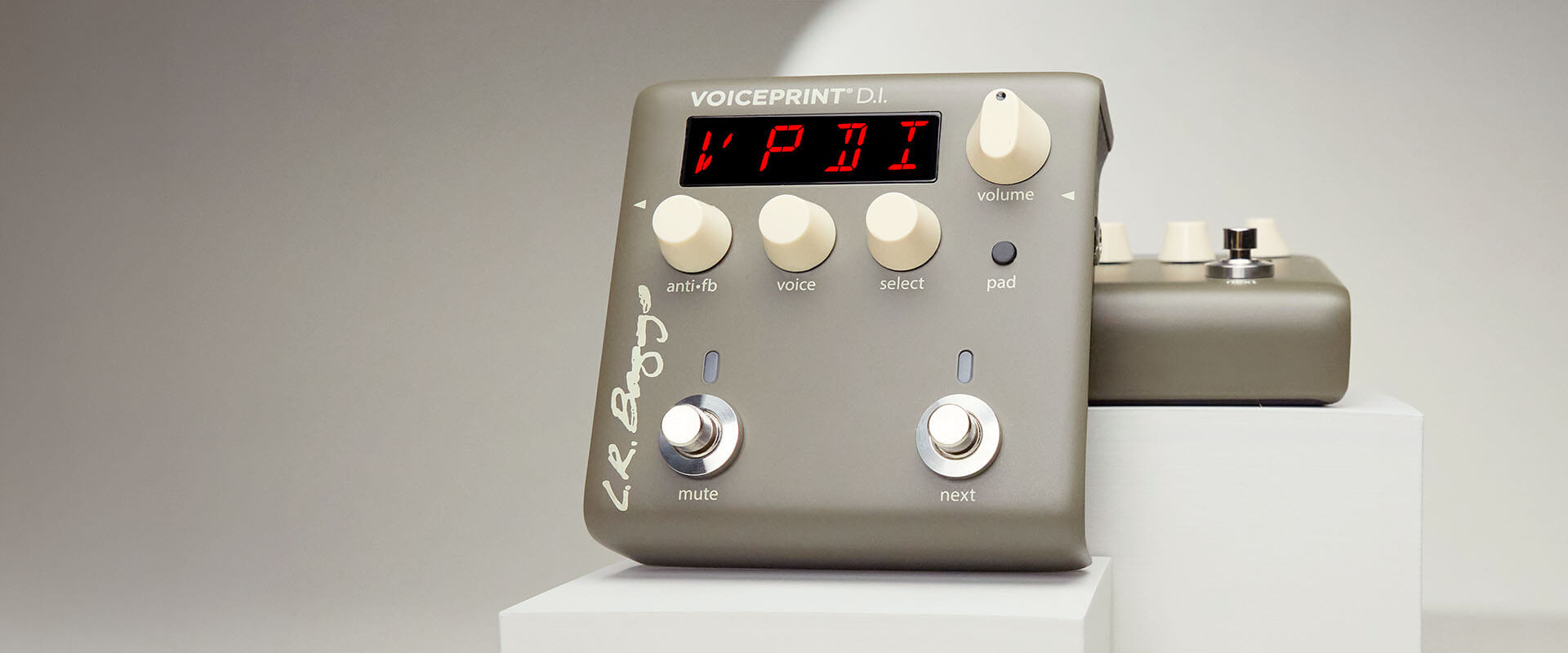

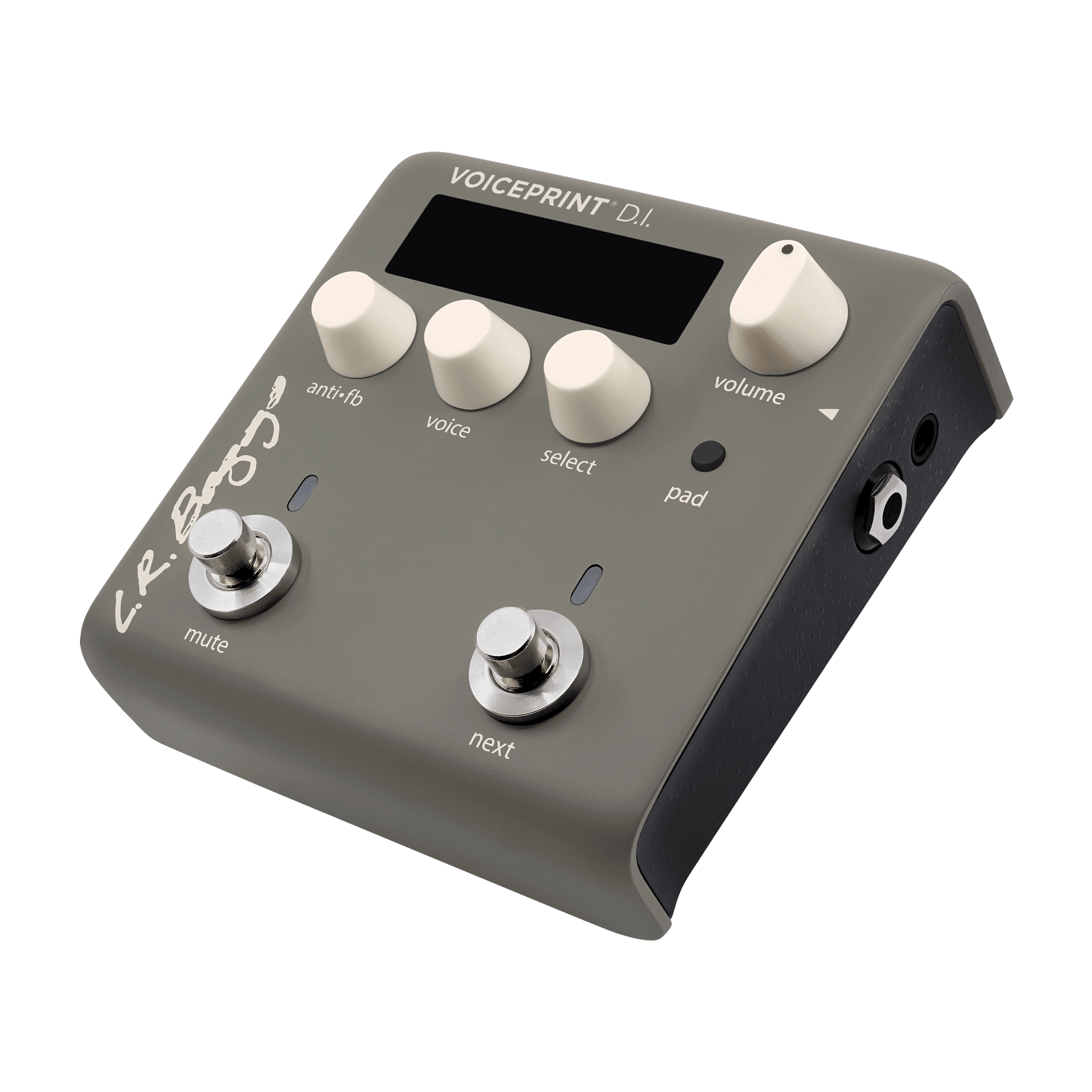

The Voiceprint DI puts your custom presets at your feet, with 99 preset slots and the essential controls you need for performing live, without needing to keep your phone available. The Anti-FB and Voice knobs give you immediate control over your Anti-Feedback and Voiceprint blend, while the Select knob scrolls between the presets loaded on the pedal. You can also use the Next footswitch to scroll through your presets one by one. A quick press of the Mute footswitch will mute both outputs of the Voiceprint DI. A long press of the Mute will bypass all of the pedal’s processing, defaulting back to your original pickup signal. The Pad button allows you to change your input level quickly to accommodate high-output pickups, and the analog Volume control on the pedal gives you full control over the signal level you send to your amp or mixer.

Voiceprint DI Demo with Trey Hensley

Trey Hensley shares his experience working with LR Baggs and the Voiceprint DI.

Voiceprint DI Demo with Corey Congilio

We invited Nashville-based touring and session guitarist Corey Congilio to demo the new Voiceprint DI and AcousticLive app.

Voiceprint DI & AcousticLive App

This introduction is the first in a series designed to show you the specific features of the Voiceprint DI and the AcousticLive App.

Voiceprint DI | Element VTC Demo

Baggs is thrilled to introduce Voiceprint DI, the next breakthrough chapter in acoustic amplification.

Voiceprint DI Reviews

“The LR Baggs Voiceprint DI is an absolute game changer! That has been said before about new pieces of gear, but this is a piece of gear that I don’t ever want to play without again. In less than three minutes, I was able to dial in a DI tone that I have been looking for my entire career.”

Trey Hensley

“Guitarists at Sweetwater are sticklers about their acoustic tone, and the ultra-real sound of the Voiceprint DI has blown them away!”

Sweetwater.com

“Seldom does an acoustic-electric advancement come along that has the potential to redefine an iconic company or surprise a veteran editor, but L.R. Baggs’ Voiceprint D.I. is that rare bird.”

Guitar Player Magazine, Editors' Pick, August 2021

“Loving the M80 and the new Voiceprint DI! I can’t believe how realistic the Voiceprint sounds.”

Justin Johnson

Voiceprint DI

Tech Specs

Instrument: Any

Type: FX/Processing

Position: Floor, Pedalboard

Active/Passive: Active

Preamp: No

Processor: 96kHz

Controls: Volume, Anti-FB, Voice, Select, Pad, Mute, Next, Ground/Lift

Power Source: 9V 500mA Power Supply

Included: Voiceprint DI, 9V power supply

U.S. Patent 11,501,745

Installation & User’s Guides

Voiceprint DI Support

User’s Guide
